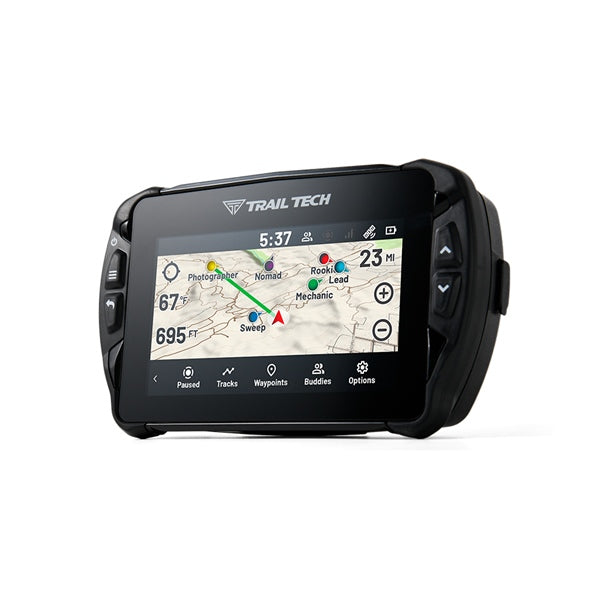

Trailtech VP4 Replacement Head Unit Motorcycle - 223249

Trailtech VP4 Replacement Head Unit Motorcycle - 223249

by Trailtech
Sold out
$979.99
Inventory
Loading...

Key Specs Summary

  • Replacement Voyager Pro4 head unit for restoring an existing VP4 setup or building a new one around compatible VP4 accessories.
  • 4.3 in WQVGA projected-capacitive touchscreen with 900 cd/m² typical brightness and 1000:1 contrast ratio.
  • NXP i.MX 6 dual-core processor, 8 Gb RAM, 32 GB internal memory, and microSD support up to 64 GB.
  • u-blox MAX-M10S concurrent multi-GNSS receiver supporting GPS, GLONASS, Galileo, and BeiDou.
  • 9–16 V DC external power through a compatible VP4 dock plus an internal 3.7 V 3100 mAh Li-ion backup battery.
  • Supports GPX, GeoPDF, and Raster MBTiles with Bluetooth 5.1 phone and headset connectivity.
  • Head unit only; dock, antenna, mounts, power wire, and sensors sold separately.

Display, Processor & Memory

  • Head Unit Part Number: 9205-R2.
  • Display Type: 4.3 in WQVGA TFT LCD, landscape orientation.
  • Touchscreen Type: Projected capacitive touchscreen.
  • Display Resolution: 480 × 272 px.
  • Brightness: 900 cd/m² typical.
  • Contrast Ratio: 1000:1 typical.
  • Viewing Angle: 80 / 80 / 80 / 80 typical.
  • Screen Appearance: Normally black.
  • Touch View Area: 96 × 54.8 mm.
  • Cover Lens Size: 116 × 79.4 × 1.1 mm.
  • Cover Lens Material: Chemically strengthened soda-lime glass.
  • Application Processor: NXP i.MX 6 dual-core processor.
  • CPU Architecture: Dual-core Arm Cortex-A9.
  • System Memory: 8 Gb RAM.
  • Internal Memory: 32 GB.
  • External Memory Support: microSD up to 64 GB.

Power, Environmental & Physical

  • External Power Input: 9–16 V DC through a compatible VP4 dock.
  • Internal Battery: 3.7 V 3100 mAh Li-ion.
  • Power Draw, Shutdown: 0 mW.
  • Power Draw, Sleep: 100 mW.
  • Power Draw, Low: 1.2 W.
  • Power Draw, Max: 2 W.
  • Battery Life, Typical Use: 2 hours.
  • Battery Life, 100% Backlight: 45 minutes.
  • Battery Charge Time: 6.5 hours.
  • Charge Temperature Range: 16–45 °C (60.8–113 °F).
  • Operating Temperature: -10–45 °C (14–113 °F).
  • Storage Temperature: -10–45 °C (14–113 °F).
  • Temperature Display Range: -10–210 °C (14–410 °F).
  • Environmental Rating: IP67.
  • Physical Dimensions: 144 × 90 × 47 mm (5.67 × 3.54 × 1.85 in).
  • Physical Weight: 410 g (0.90 lb).
