Key Specs Summary

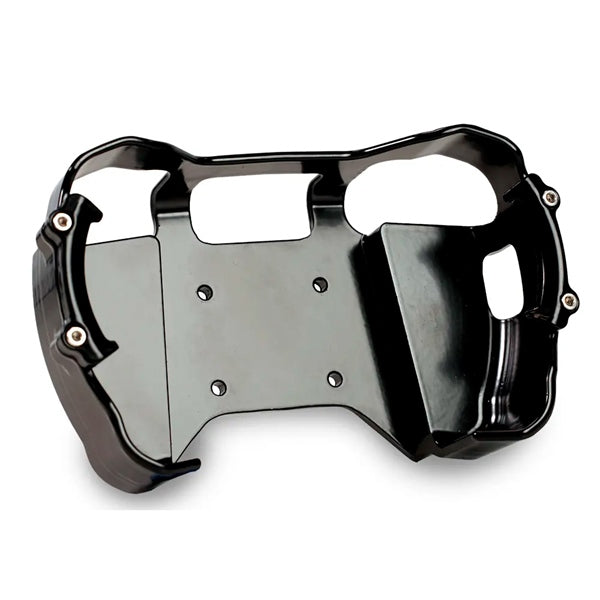

- Black-anodized 6061 aluminum protector with wraparound cage design.
- Includes center bar mount for 1-1/8 in handlebars plus adapter for 7/8 in bars.
- Can also mount to compatible 30 × 38 mm AMPS or RAM hardware.
- MicroSD card slot remains accessible with protector installed.
- Front wings now use 2 screws per side for easier opening than the previous layout.
- CNC-machined contour surfaces use a topographic-line style finish.
- Voyager Pro4 head unit and dock not included.
Material, Finish & Dimensions
- Protector Material: Aluminum 6061 T1.
- Protector Finish: Black anodized.
- Protector Surface Character: CNC-machined contour surfaces with visible machining scallops; appearance resembles topographic lines.
- Protector Size: 158 × 91 × 52.6 mm.
- Front Wing Material: Aluminum 6061 T1.
- Front Wing Finish: Black anodized.
- Front Wing Surface Character: CNC-machined contour surfaces with visible machining scallops; appearance resembles topographic lines.
- Front Wing Size: 16.6 × 47.8 × 6 mm (each).
- Mounting Block / Computer Mount Adapter Material: Aluminum 6061 T1.
- Mounting Block / Computer Mount Adapter Finish: Black anodized.
- Mounting Block / Computer Mount Adapter Construction: CNC machined.
- Mounting Block Size: 47.5 × 48 × 9.5 mm.
Mounting, Fitment & Access
- Protection Layout: Base cage plus left and right front wings.
- Access Feature: MicroSD card slot remains accessible.
- Wing Attachment Hardware: 4 × M3 × 8 mm SHCS (2 per side).
- Main Mounting Hardware: 4 × M4 × 20 SHCS.
- Included Bar Mount: Center bar mount for 1-1/8 in handlebars with adapter for 7/8 in bars.
- Mounting Block Surface-Mount Holes: 2 × 6.3 mm holes with 14 mm detents.
- Mounting Block AMPS Holes: 2 sets of 30 × 38 mm AMPS tapped M4 × 7 holes.
- Mounting Position Options: Forward/rear offset choices built into the surface-mount holes and AMPS hole sets.
- Alternate Mounting Option: Protector can be used without the included mounting block or bar clamp on compatible 30 × 38 mm AMPS or RAM mounts.
- Example Compatible Mount Style: RAM ball AMPS plate.
- Mounting Type: Center-bar mount with CNC AMPS mounting block; also compatible with certain AMPS and RAM mounting solutions.
- Intended Vehicle Type: Motorcycle, snowmobile, and handlebar applications.
- Compatibility / Fitment: Designed for Voyager Pro4 head unit and dock installations.
- Device / Dock Included: No.
