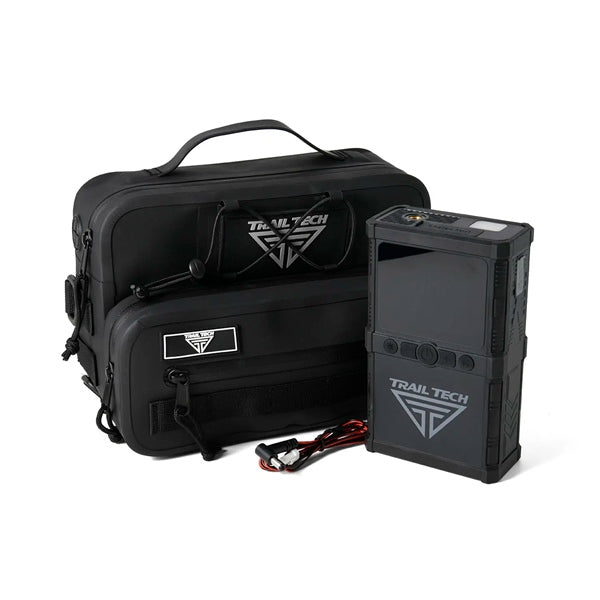

Trailtech VP4 Portable Power Bundle

Key Specs Summary

• Complete VP4 portable-power bundle with handlebar bag, Rugged Jump Starter Air Compressor, and VP4 power wire.
• Lets riders run or extend Voyager Pro4 on vehicles without a suitable regulated DC battery.
• Includes 063-JMP with 8000 mAh battery, 500 A starting current, 1000 A peak current, and 0.2–10.3 bar / 3–150 PSI programmable inflation.
• Includes 9000-1014, a 1220 mm power wire with male 3-pin JST and center-positive 5.5 × 2.1 mm barrel plug.
• Carry solution keeps the power source staged close to the cockpit for snowmobile and lightweight off-road use.
• Adds tire inflation, jump-start, and USB charging utility alongside VP4 power support.
• Voyager Pro4 head unit and dock not included.

Bundle Composition & System Use

• Included Bag: 026-BAG Handlebar Bag.
• Included Power Device: 063-JMP Rugged Jump Starter Air Compressor.
• Included VP4 Power Wire: 9000-1014.
• Primary Bundle Function: Portable external power and carry kit for Voyager Pro4.
• VP4 Power Path: 063-JMP barrel output ? 9000-1014 power wire ? VP4 dock 3-pin JST power input.
• Intended Use: Run or extend Voyager Pro4 on vehicles without a suitable regulated DC battery.
• Secondary Functions: Tire inflation, vehicle jump starting, and small-device USB charging.
• VP4 Head Unit / Dock Included: No.

Included Jump Starter / Air Compressor Specifications

• Rated Power: 90 W.
• Battery Voltage: 14.8 V.
• Battery Capacity: 8000 mAh.
• Battery Configuration: 4 × 2000 mAh lithium cells.
• Starter Current: 500 A.
• Peak Current: 1000 A.
• Published Start Capacity: Up to 20 starts on a single charge.
• Published Engine Guidance: Gas engines up to 5.7 L V8.
• Compressor Cylinder Inner Diameter: 22 mm.
• Inflation Flow: 27 L/min.
• Inflation Pressure Range: 0.2–10.3 bar / 3–150 PSI.
• Pressure Units Displayed: bar / PSI / kPa / kg/cm².
• Power Input Port: USB Type-C.
• USB Input / Output Rating: 5 V / 2 A.
• Product Dimensions: 197 × 49 × 104 mm.
• Net Weight: 695 g.

Included VP4 Power Wire Specifications

• Wire Part Number: 9000-1014.
• Cable Length: 1220 mm.
• Wire Colors: Red / Black.
• VP4-Side Connector: Male 3-pin JST.
• Power-Source-Side Connector: Center-positive 5.5 × 2.1 mm barrel plug.
• Barrel Connector Style: CUI P5.
• Intended Compatibility: Trail Tech Rugged Jump Starter Air Compressor to VP4 dock power input.

Carry & Staging Use

• Included Bag Type: Handlebar bag.
• Primary Carry Use: Carry and protect the power source close to the cockpit for VP4 external-power use.
• Snow Use: Especially useful for snowmobile bar-mounted power support.
• Lightweight Off-Road Use: Useful for dirt-bike and other compact installs where portable staged power is preferred.
• Alternate Carry Ecosystems: Riders may also use separate MOLLE-style carry solutions if desired (sold separately).

Compatibility & Fitment

• Compatible Head Unit Platform: Voyager Pro4.
• Required VP4 Hardware: Compatible VP4 dock with power input.
• Compatible Power Device: Trail Tech Rugged Jump Starter Air Compressor.
• Intended Vehicle Use: Snowmobiles, motorcycles, and other installations using portable staged power.
• Electrical Use Case: Vehicles without a suitable regulated DC battery, or riders who want backup runtime support.
