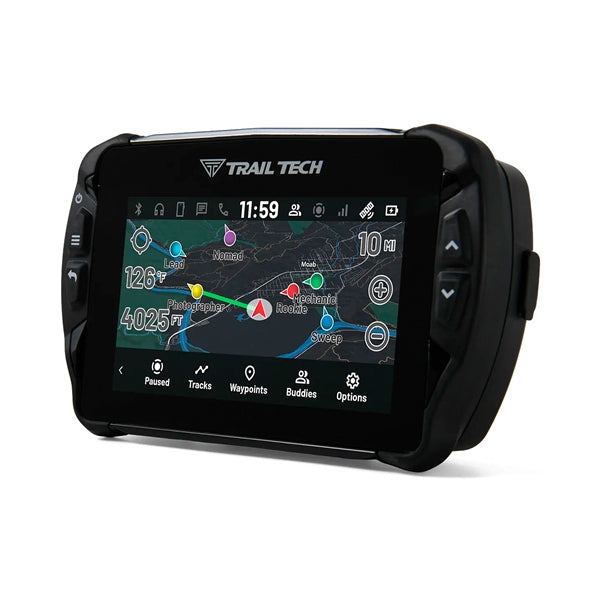

Trailtech Voyager Pro4 MOTO Kit Motorcycle - 223250

GNSS, Mapping & Recording

• GNSS Chipset: u-blox MAX-M10S.
• GNSS Receiver Type: Concurrent multi-GNSS receiver.
• Supported Constellations: GPS, GLONASS, Galileo, BeiDou.
• GPS Accuracy: 1.5 m.
• GPS Update Rate: 10 Hz.
• Speed Range: 0-320 km/h.
• Distance Range: 0-999,999 km.
• Elevation Range: Up to 9,000 m.
• Accumulated Runtime: 0-99,999 hr.
• GPS Record Rate Options: 1, 2, 5 sec / 1, 5, 10 m.
• Supported File Types: GPX, GeoPDF, Raster MBTiles.

Onboard File Support

• GPX Recording & Export: View actively recorded tracks on the device and save or export rides as GPX files, including waypoints.
• GPX Import: Import previously exported GPX files or custom GPX files created with route-planning tools.
• GeoPDF: Import georeferenced single-image map overlays. GeoPDF files can be created with GIS software or exported from services supporting geospatial PDF maps.
• Raster MBTiles: Import compatible raster MBTiles map packages. Files must be prepared as a single raster layer and can include multiple zoom levels for offline navigation.
• Custom Map Storage Note: Available space for custom maps is typically around 2 GB with default maps installed. Replacing the default maps can increase available storage to approximately 20 GB.

Buddy Tracking & Group Ride

• Buddy Tracking Technology: Private rider-to-rider location network using radio signals and GPS.
• Group Capacity: Supports up to 20 riders in a single group.
• Cell Service Requirement: Not required.
• Network Behavior: Riders can relay location updates through the group, helping dispersed riders stay connected.
• Typical Buddy-to-Buddy Range: Approximately 0.5-1.5 miles.
• Range Note: Range improves with line of sight and fewer obstructions; terrain, installation, and environmental conditions affect real-world results.
• Required Hardware: External V2V antenna required and included in the kit.
• Antenna Mounting Guidance: Mount the V2V antenna vertically for best performance.
• Compatible Group Ride Systems: Compatible with Polaris RIDE COMMAND Group Ride vehicles.
• Buddy View: Displays group members on the map screen with name and location.
• Buddy Features: Buddy Tracking, Buddy Tails, Navigate to Buddy, and Buddy Beacon.
• Buddy Beacon Note: Group-alert and regroup function only; not a rescue beacon.

Wireless, Audio & Interfaces

• Bluetooth Version: 5.1.
• Bluetooth Profiles / Functions: HSP, HID.
• Bluetooth Phone / Headset Pairing: Supports music controls, calls, and text alerts with a compatible phone and headset.
• Dock Connector to Head Unit: Gold pogo pins.
• Dock Rear Harness / Sensor Stubs: 4 JST stubs.
• Power Connector: Female 3-pin JST.
• Buddy Tracking V2V Antenna Connector: SMB (included).
• GPS Booster Antenna Connector: SMB (sold separately).
• Wheel Sensor Connector: Male 2-pin JST (sold separately).
• Tach / Ignition Sensor Connector: Female 2-pin JST.
• Temperature Sensor Connector: Female 4-pin JST.
• Ambient Temperature Sensor: Integrated short-stub sensor on dock.

MOTO Kit Dock, Mount & Fitment

• Dock Part Number: 9200-DOCK.
• Dock Material: Plastic.
• Dock Release Style: Quick-release hard mount.
• Handlebar Mounting AMPS Plate: Included.
• Handlebar Mounting Hardware: 9200-BKPK.
• Buddy Tracking Antenna: 9200-V2V1.
• Power Wire: 9000-1011 (48 in).
• Tach Sensor: 9000-1021 (70 in).
• Temperature Sensor: 7500-3000 Universal Temperature Sensor.
• Intended Vehicle Type: Dirt bike, dual-sport, and adventure motorcycles.
• Compatibility / Fitment: Compatible with motorcycles equipped with regulated 9-16 V DC power.
• Mounting Type: Handlebar / AMPS hard mount.
